T5 World Class Master Rebuild Kit
Application:
Year
Additional Information:
You have 1000 characters left.

The product you selected is currently unavailable.

Price: $339.93
Availability: in stock

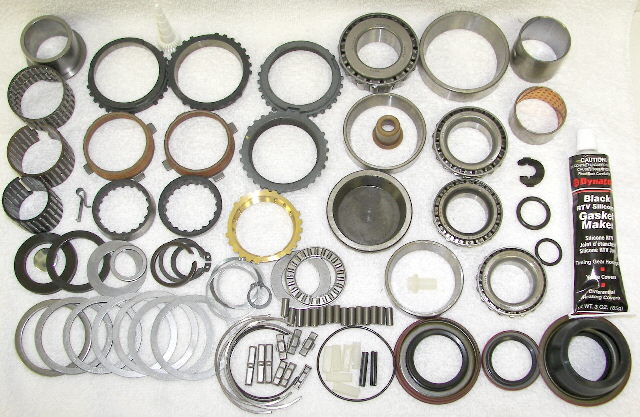

Master Overhaul Kit for World Class T5 Transmissions.

Includes:

  • 1st and 2nd three piece carbon fiber synchronizer rings
  • 3rd and 4th carbon fiber synchronizer rings
  • brass 5th synchronizer ring
  • front and rear seals
  • rear tail housing bushing
  • input roller bearings (15)
  • Koyo & Torrington Hi Cap Heavy Duty Bearings Included:
  •      all main shaft bearings
  •      all main shaft gear bearings
  •      all countershaft bearings
  • shift fork pads
  • input and countershaft shims
  • synchronizer keys
  • retaining springs
  • c-clip
  • roll pin
  • speedo o-ring
  • countershaft oil insert
  • shifter bushing
  • snap rings
  • spacer washers
  • 1st gear bearing sleeve
  • silicone sealant

T5 world class kit will fit:

GM Camaro & Firebird 1988 - 2002

Ford 1985-2006

GM S10, S15 & GMC World Class 1994-95

There are some T5 world class units that do not fit into the year ranges given.

If you are unsure and the unit is disassembled, if it has a three piece 1-2 synchro ring assembly & a paper or composite lined 3-4 ring, it is a world class. -OR-

If you unit has a tag bolted to the tailhousing these #'s represent world class units:

Three Digits of Part Number: 1352-000-XXX)

114 thru 116,      126,       134,        141,         155,         162,        165,

167 thru 169,      174 thru 177,        184,         194 thru 200,           202 thru 205,

207       229,       238,        247,       248,         249,          251,       254,

258,      260
